Spray Guns
TONSON spray guns feature excellent atomization, low pollution, heavy-duty performance and ergonomic handling for solvent-borne, waterborne and high-solid liquid coatings including materials such as viscous waterbornes and plural-component urethanes. All parts are made of stainless steel and teflon for durability. Multi-color streak and spot spray guns are also available.
W99 (Description: Durable lightweight spray gun, available in gravity, pressure and siphon feed. Suitable for small to medium painting jobs in general indistries.
Car-Finishing

TONSON Spray Gun put to own use.
Proud and confident of oneself.

One of TONSON company’s vehicles being sprayed by TONSON W99 spray gun in body shop.
Great atomization and finishing effect”, told by finishing master.



Type
W99-G10M

Feed Method
Diameter of
Nozzle (mm)
Alr Pressure
(kg/cm2)
Spray
Distance(mm)

Campreesor
Required(kw)

Seandard
Paint (cc)
Container

spray gun
W99-G8M
Gravity

0.8

3.0-3.5
200
1.5
400
W99-G10M
1.0
W99-G13M
1.3
W99-G15M
1.5
W99-G20M
2.0
W99-G25M
2.5
spray guns
W99-S8M
Suction

0.8

3.0-3.5
200
1.5
700
W99-S10M
1.0
W99-S13M
1.3
W99-S15M
1.5
W99-S20M
2.0
W99-S25M
2.5
spray gun
W99-1S8M
Suction

0.8

3.0-3.5
200
1.5
1000
W99-1S10M
1.0
W99-1S13M
1.3
W99-1S15M
1.5
W99-1S20M
2.0
W99-1S25M
2.5



Accessory

2 Liters Pressure Tank
Mat
Viscosimeter
Equivalent to Ford Cup 4
Regulator
Filter Cup
Model
P-2L
Y-99Y

V-1

R2

TS-FC

Item

2 Liters Pressure Tank
Paint Container Mat
Viscosimeter
Regulator
Filter Cup
Description
Discharge Material Tank
Balance the container prevent it from solvent overflow
Measure the viscosity
Control and save air
Stainless steel filter web

Recommended Products

diaphragm pumps pressure tanks
Diaphragm Pumps Pressure Tanks Hoses & Fittings

-------------------------------------------------------------------------------------------------------------------------------------------------------------
Spray Gun

Model

YD-101G
Fluid Tip Size (mm) Ø1.3mm
Air Pressure (Bar/PSI) 2.0 - 2.5 / 28 -36
Air Inlet 1/4 NPS
Fluid Inlet 1/4 NPS
Fluid Output (ml/min) 155 - 170
Air Consumption (l/min/cfm) 210 - 250 / 7.4 - 8.8
Spray Pattern (mm) 463
Weight (g) 463
Capacity of Cup (L) 0.4
a. Optional Nozzle Size : Ø1.0mm, Ø1.5mm, Ø1.8mm
b. Improved maneuverability with light weight and well-balanced gun body.
c. Stable atomizing performance with less paint adhesion to the air cap.
d. Steady spray pattern and uniform coating.

Spray Gun

Model

YD-101S
Fluid Tip Size (mm) Ø1.3mm
Air Pressure (Bar/PSI) 2.0 - 2.5 / 28 -36
Air Inlet 1/4 NPS
Fluid Inlet 1/4 NPS
Fluid Output (ml/min) 140 - 145
Air Consumption (l/min/cfm) 210 - 250 / 7.4 - 8.8
Spray Pattern (mm) 180 - 200
Weight (g) 569
Capacity of Cup (L) 0.6
a. Optional Nozzle Size : Ø1.0mm, Ø1.5mm, Ø1.8mm
b. Improved maneuverability with light weight and well-balanced gun body.
c. Stable atomizing performance with less paint adhesion to the air cap.
d. Steady spray pattern and uniform coating.

Spray Gun

Model

YD-102
Fluid Tip Size (mm) Ø1.6mm
Air Pressure KG/cm2 (PSI) 3.5 - 5 (50 - 70)
Air Inlet 1/4"
Fluid Inlet 3/8"
Air Consumption L/min (CFM) 280 - 360 (10 -12.7)
Weight (g) 1100
Capacity of Cup (L) 1.0
Type Suction
a. Optional Nozzle Size : Ø1.0mm, Ø1.5mm, Ø1.8mm, Ø2.0mm
b. Medium to large paint jobs.
c. Excellent atomization.

Spray Gun

Model

YD-102-1
Fluid Tip Size (mm) Ø1.6mm
Air Pressure KG/cm2 (PSI) 3.5 - 5 (50 - 70)
Air Inlet 1/4"
Fluid Inlet 3/8"
Air Consumption L/min (CFM) 280 - 360 (10 -12.7)
Weight (g) 1100
Capacity of Cup (L) 1.0
Type Suction
a. Optional Nozzle Size : Ø1.0mm, Ø1.5mm, Ø1.8mm, Ø2.0mm
b. Medium to large paint jobs.
c. Excellent atomization.

Spray Gun

Model

YD-102-2
Fluid Tip Size (mm) Ø1.6mm
Air Pressure KG/cm2 (PSI) 3.5 - 5 (50 - 70)
Air Inlet 1/4"
Fluid Inlet 3/8"
Air Consumption L/min (CFM) 280 - 360 (10 -12.7)
Weight (g) 1100
Capacity of Cup (L) 1.0
Type Suction
a. Optional Nozzle Size : Ø1.0mm, Ø1.5mm, Ø1.8mm, Ø2.0mm
b. Medium to large paint jobs.
c. Excellent atomization.

Spray Gun

Model

YD-102-3
Fluid Tip Size (mm) Ø1.6mm
Air Pressure KG/cm2 (PSI) 3.5 - 5 (50 - 70)
Air Inlet 1/4"
Fluid Inlet 3/8"
Air Consumption L/min (CFM) 280 - 360 (10 -12.7)
Weight (g) 1100
Capacity of Cup (L) 1.0
Type Suction
a. Optional Nozzle Size : Ø1.0mm, Ø1.5mm, Ø1.8mm, Ø2.0mm
b. Excellent atomization.
c. With 43 air cap.

Spray Gun

Model

YD-202
Fluid Tip Size (mm) Ø1.0mm
Air Pressure KG/cm2 (PSI) 3.5 - 5 (50 - 70)
Air Inlet 1/4"
Fluid Inlet 3/8"
Air Consumption L/min (CFM) 280 - 360 (10 -12.7)
Weight (g) 2400
Capacity of Cup (L) 2.0
Type Pressure
a. Optional Nozzle Size : Ø1.5mm, Ø1.8mm
b. Excellent for large area as buses , truck and vans.
c. Allows users to mix and paint 2 quarts at a time.

Refillable Aerosol Spray Gun
Refillable aerosol spray gun Model RA-690
Air Pressure Up To 200 PSI
Weight (Kg) 0.15
Capacity of Refillable Spray Gun 0.6
a. Rechargeable and non-polluting aerosol can.
b. Fill with most liquids you wish to spray.
-------------------------------------------------------------------------------------------------------------------------------------------------------------

Small Spray Gun
Small Spray Gun
Model
R2-R
R2-F
Item
Small spray gun
Small spray gun
Nozzle (mm)
0.5
0.5
Description
Round
Flat

Air Brush
Item
Air brush
Air brush
Air brush
Air brush
Air brush
Model
GC-330
GC-220
GA-120
GP-130A
GP-130
Nozzle
0.3
0.2
0.2
0.3
0.3
Body Length (mm)
145
140
150
141
132
Cup capacity
7cc
15cc
15cc & 17cc
7cc
7cc
Cup
fixed
fixed
Detachable
Detachable
fixed
Operation method
Push-button
Push-button
Trigger
Push-button
Push-button
Spray
Non-adjustable
Non-adjustable
Adjustable beofrehand
adjustable
adjustable

-------------------------------------------------------------------------------------------------------------------------------------------------------------
  Streak and Spot Spray Gun
Multi-color Spray Gun
Model
TS-7P
TS-MT
Item
Streak and spot spray gun
Multi-color spray gun
Description
Spray protrude, flat spot, smooth surface
Spraying of similar to marble flower, nucleolus
Streak Spray Gun SampleSpot Spray Gun Sample
Multi-color Spray Gun sampleMulti-color Spray Gun
Streak Spray Head Spot Spray Head
Multi-color Spray Gun
Streak srapy-head
Spot srapy-head


Suction Spray Gun with Mixer
Fiber / Ceramic Spray Gun
Model
W-1-S
TS-CG
Item
Suction spray gun with mixer
Fiber / Ceramic spray gun
Nozzle (mm)
0.8, 1.0, 1.3, 1.5, 2.0, 2.5
-
Description
Suction spray gun attach mixer enable color to mix well
Spraying of sludhe, cement, enamel
-------------------------------------------------------------------------------------------------------------------------------------------------------------
Two Component Spray Gun

Item
Model
Nozzle (mm)
Specifications:

Flat Spray Air Cap:  60°
Round Spray Air Cap:   15°
Max. Material Pressure:   6 bar (87 PSI)
Max. Air Pressure:   5 bar (73 PSI)
Air Hose:   PU 4 mm x 6 mm (ID x OD)
Material Hose:   PE 4 mm x 6 mm (ID x OD)
Dimensions: 135 x 66 x 120 mm
Gun Body:    Aluminum
Spray Head:     Stainless Steel
Nozzle and Needle:     Stainless Steel
Mass:   510 g (1.12 lb)

Specifications may be customized.

Two Component Spray Gun
Two Component Spray Gun
FS-2

1.0

2.0

Order Code
FS-2-##-&&      ##: Nozzle Option: (02 = 0.2 mm, 03 = 0.3 mm, 05 = 0.5 mm, 08 = 0.8mm,
                                                       10 = 1.0 mm, 12 = 1.2 mm, 15 = 1.5 mm)
                       &&: Air Cap Option: (15 = Round Spray Air Cap 15°
                                                        60 = Flat Spray Air Cap 60°)
Example: FS-2-10-15 (1.0 mm nozzle, 15° Round Spray Air Cap)



Two Component Spray Gun Spray Gun
Model
Item
Two component spray gun
Nozzle (mm)
1.8
Description
Mix two liquid such as composite paint material, hardener, then instant harden suitable for FRP. PU


Two Liquid Spray Gun
Model
W-2
Item
Two liquid spray gun
Nozzle (mm)
-
Description
Mix two liquid such as composite paint material, hardener, then instant harden suitable for FRP. PU
-------------------------------------------------------------------------------------------------------------------------------------------------------------

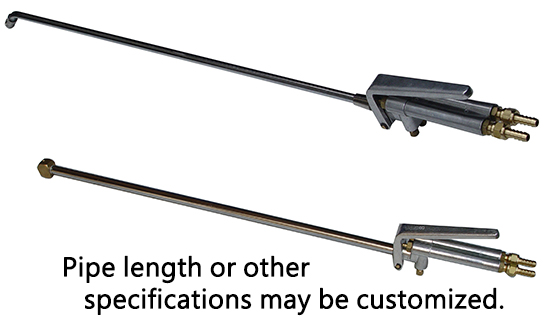

Dual Action Release Agent Spray Gun

Die-Cooling / Cleaning Release Agent Spray Gun
TONSON Dual Action Release Agent Spray Gun is ideal for die-cooling / cleaning, lubricating and spraying of release agents on forging, die casting, rubber and plastic moulding dies. The spray gun has two hose connectors for air and die-coat. Featuring two in operation as it may first releases a blast of air for cleaning then spray release agent.
Availabe in two models:
   CS-1 with Single orifice and bend pipe providing easy access to all parts of die from safe working distange
   DS-1, with two orifices nozzle to provide diagonally opposite spray for effective spraying on both sides of dies simultaneously without twisting the spray gun. Pipe length or other specifications may be customized.

Die casting spray gunrelease agent spray gun for die-cooling, cleaning and spraying
-------------------------------------------------------------------------------------------------------------------------------------------------------------

RELEASE AGENT SPRAY GUN

Specially designed to handle sprayable fluids of very low viscosities.
(ex. Release Agents or oils) in finest droplets with reduced overspray.

Fine coordination of prevision made nozzle, needle and air cap produce an atomizing result which particularly when applying release agents gives an extreme smooth layer on moulds and dies. Worldwide this very handy gun is popular in the field of thermoplastic industries and the foundry industries. Featuring handy short gun body and the duo-feed hose for fluid as well as atomizing air through the grip to allow comfortable handling. In accordance to latest regulations, release agents free of CFC will only be allowed. These agents provide a smooth finish of fine droplets to the surface when applied with this gun.
Different nozzle extensions and HVLP-technique for application of adhesives available.

Item
Model
Nozzle (mm)
Specifications:

Flat Spray Air Cap: 45°, 60° Standard)
Round Spray Air Cap: 15° (Standard)
Max. Material Pressure: 4 bar (58 PSI)
Max. Air Pressure: 6 bar (87 PSI)
Air Hose: PU 4 mm x 6 mm (ID x OD)
Material Hose: PE 4 mm x 6 mm (ID x OD)
Gund Body: Aluminum
Nozzle and Needle: Stainless Steel
Mass: 240 g (0.53 lb)
Option: With round-flat spray regulation

Specifications may be customized.
Release Agents Spray Gun
Fine Spray Gun
FS-1

0.2

0.3
0.5
-------------------------------------------------------------------------------------------------------------------------------------------------------------
  Glue Injection Gun
Teflon Body Glue Injection Gun
Cleaner Gun
Blow Gun
Model
TS-43

TS-46

TS-360

S-280
Item
Glue injection gun
Teflon body glue injection gun
Cleaner gun
Blow gun
Description

PH acid, alkali-durable
-
Nozzle length: 11mm-280mm


Auto Spray Gun
Auto Spray Gun
Model
RA-88

RA-88-1

Item
Auto spray gun
Auto spray gun
Nozzle (mm)
0.8, 1.0, 1.3, 1.5, 1.8
-
Description
Standard Nozzle: 1.3mm
-
-------------------------------------------------------------------------------------------------------------------------------------------------------------
Wonder Gun

3 functions in one (Blow, Suction and Transferring):
        Blow
           -Cleaning: blow chips or metal scraps away in designated area
           -Cooling
           -Drying
        Suction
           -Vacuum: collection of dust, sand, fragments
        Transferring
           -Conveying: Powder, plastic beads / granule, food
           -Discharge
Operation
1. Blow -- open B, turn hole of sleeve in the gun right, lock tube of compressor and inlet, then operate
2. Suction -- open B, turn hole of sleeve in the gun to gun point, lock tube of compressor and in let, then operate
Application

Chemicals, medicine, process factory, metal factory, electronic tool manufacture, furniture, dope, textile, etc.
Feature
1. Discharge: Used as cleaner. Clean out scraps of lathe and grinder.
2. Suction: Aspirate dust, sand, fragment in the gap
3. Blow: Dry the humidity in the engine room or the car
4. Cool: Cool pattern making tool, melt and jointing products
5. Convey: Powder, plastic granule, food, chemical
6. Discharge and special function: Combusting-supporter
Notice:
*Gun point A, B should not aim at person's eyes while opening C
*Before suction, tube or sack is necessary.

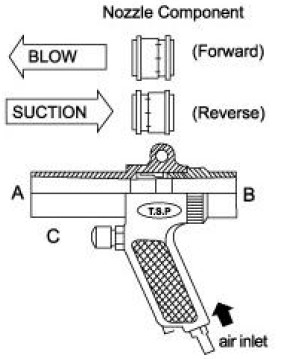

Wonder gun drawing
Model
Diameter (A)
Nozzle Component
Length
Net Weight
Dia.
Port
Wonder Gun Kit
A-22kit
26mm
22mm
6 x Ø1.4mm
144mm
310g
Wonder Gun
A-11
14mm
11mm
3 x Ø1.4mm
142mm
260g
Air Vacuum
A-22
26mm
22mm
6 x Ø1.4mm
144mm
310g


HEADQUARTER
TONSON AIR MOTORS MFG. CORP.
22 Shu-Yi 1st Lane, Taichung 40256, TAIWAN
TEL: +886-4-2261 1047   Mobile: +886-928 989238   FAX: +886-4-2261 1678

GPS: 24°07'12.38"  N 120°39'25.68" E

CHINA
NeuMek (Shanghai) Corporation
289 Long Lian Rd., Qing Pu District, Shanghai 201702, CHINA
TEL:+86-21 2281 8889   +86-21 2281 7669  FAX:+86-21-3987 9136
Mobile : +86-13917636393 / 13818-336699
  sales@neumek.com

Guang Dong, CHINA
29 San Heng Rd., Ci Bian Xiao Qu, Hou Sa Rd.
Hou Jie Town, Dong Guan 52300, CHINA
TEL:+86-(0) 769 8122 0478   FAX:+86-(0) 769 8122 0479
Mobile : +86-13560848899

Fu Jian , CHINA
12 Building A, Gao Pu Mao Yi Shang Cheng, Xing Lin East Road,
Ji Mei District, Xia Men City, Fu Jian Province, CHINA
TEL:+86-(0) 592 625 9768   FAX:+86-(0) 592 625 9769
Mobile : +86-13779945836

United States
AIR MOTORS TONSON (USA)

AUSTRALIA
TONSON AUSTRALIA Pty. Ltd.
U3, 4 Weld Street
Liverpool Sydney NSW 2177
TEL: +61 (0)2 9600 8881   FAX: +61 (0)2 9600 8882

Copyright ©™ 1966 - 2010 TONSON Air Motors
