Pressure Tanks TONSON


PRESSURE TANKS
Rugged, Portable tanks of aluminum, carbon or stainless steel construction for use in pressure applications:
Paints, adhesives, porcelains, enamel, ink…ect. Available in air mixer, manual mixer and non-mixer models.

All models equipped with pressure regulator and safety pressure releasing valve. Agitated models are equipped with TONSON Piston Air Motor featuring low air consumption and high torque to prevent material precipitation. Withstanding higher pressure than one-piece barrel type pressure tank. Upholding standards of reliability, durability and safely engineered with have made it like no other.

APPLICATIONS
Coating, Painting (auto body, woodworking, footwear)
Spraying (rust proof, release agents, adhesives, polyurethane, silicone)
Fluid Processing (Mixing / Blending of Chemicals, Inks, Paints)
Fluid Storage
Fluid Transfer / Dispensing

FEATURES

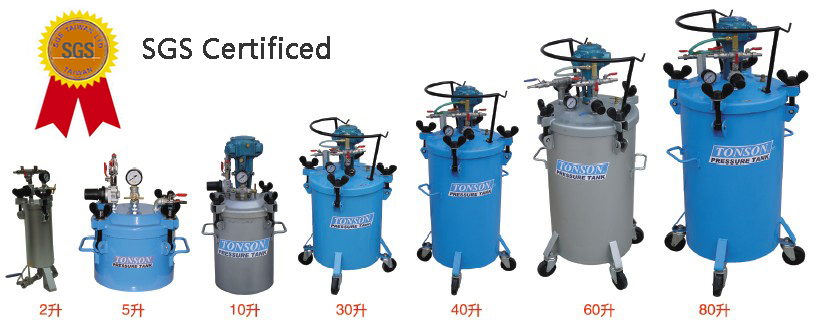

Diverse Capacity (2L, 5L, 10L, 30L,40L, 60L, 80L, 100L)
Time Saving on Material Replenishment
Sturdy Swivel Casters
Safe Sealing (Eliminate Evaporation of Flammable or Hazardous Materials)

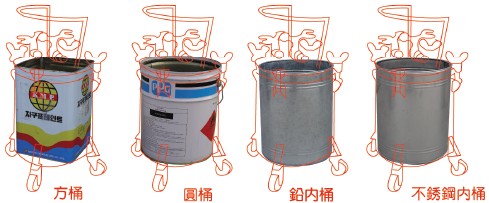

Compatible with Standard 5 Gallon / 20 Liters containers
compatiible

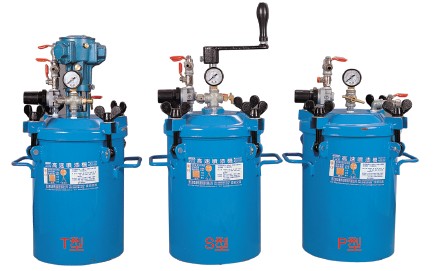

Available in air mixer, manual mixer and non-mixer models.
Available Models

Model
Volume
(L)

Mixing Method

Max. Working
Press

High Pressure
(Thick Tank)
Option

Outlet materail
Mass
(kg)
Dimension
(LxWxH) cm
T-10L
10
T TYPE
Air Motor
Automatic Mixer
3.5 kg / cm2
10.0 kg / cm2
1/4" x 1pc
13
30x30x52
T-30L
30
1/4" x 2pcs
25.5
43x43x73
T-40L
40
30
43x43x88
T-60L
60
35
57x57x88
T-80L
80
38.5
57x57x103
T-100L
100

T-120L
120
10.0 kg / cm2
T-150L
150

T-200L
200

S-10L
10
S TYPE
Manual Mixer
3.5 kg / cm2
10.0 kg / cm2
1/4" x 1pc
11
30x30x49
S-30L
30
1/4" x 2pcs
23.5
43x43x73
S-40L
40
28
43x43x88
S-60L
60
33
57x57x88
S-80L
80
36.5
57x57x103
S-100L
100

S-120L
120
10.0 kg / cm2

S-150L
150

S-200L
200

P-2L
2
P TYPE
For materal not
deposited easily
4 kg / cm2
10.0 kg / cm2
1/4" x 1pc
1
14x14x35
P-10L
10
3.5 kg / cm2
10.5
30x30x47
P-30L
30
1/4" x 2pcs
23.5
43x43x73
P-40L
40
28
43x43x88
P-60L
60
33
57x57x88
P-80L
80
36.5
57x57x103
P-100L
100

P-120L
120
10.0 kg / cm2

P-150L
150

P-200L
200

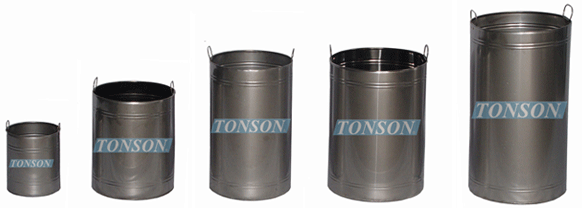

Tank / liner

Model
L10
L30
L40
L60
L80
Capacity(liter)
10 L
30 L
40 L
60 L
80 L
         Other capacities may be customized.




SPECIFICATIONS

2 Liters
0.5 GAL
2 Liters Aluminum Pressure Tank
2 Liters Stainless Steel Pressure Tank
2 Liters Stainless Steel Pressure Tank with Bottom Outlet
Pressure cup

2 Liters Pressure Tank

Pressure Tank
 Model P-2L P-2SUS P-2BSUS
 Capacity(liter) 2L
 Working Pressure 3.5 kg/cm2  |  50 PSI
 Mixer N/A N/A N/A
 Material Outlet 1/4" x 1 1/4" x 1 1/4" x 1
 Dimension cm (L x W x H)
 Net Weight (kg)
 Gross Weight (kg)


5 Liters
1.25 GAL
5 Liters Carbon Steel Pressure Tank
5 Liters Stainless Steel Pressure Tank

Pressure Tank

5 Liters Pressure Tank

with wheel
Pressure Tank

Pressure Tank
 Model P-5 T-5 T-5-wheel P-5-SUS S-5-SUS T-5-SUS
 Capacity(liter) 5L
 Working Pressure 3.5 kg/cm2  |  50 PSI
 Mixer N/A TONSON Air Motor TONSON Air Motor N/A Manual TONSON Air Motor
 Material Outlet 1/4" x 1 1/4" x 1
 Dimension cm (L x W x H)
 Net Weight (kg)
 Gross Weight (kg)


10 Liters
2.5 GAL
10 Liters Carbon Steel Pressure Tank
10 Liters Carbon Steel Pressure Tank with Bottom Outlet

Pressure Tank

Pressure Pot
Paint pressure feed tanks
Pressure Tank
Pressure Tank
Pressure Pot
 Model P-10 S-10 T-10 P-10B S-10B T-10B
 Capacity(liter) 10L
 Working Pressure 3.5 kg/cm2  |  50 PSI
 Mixer N/A Manual TONSON Air Motor N/A Manual TONSON Air Motor
 Material Outlet 1/4" x 1 1/4" x 1
 Dimension cm (L x W x H) 30 x 30 x 47 30 x 30 x 49 30 x 30 x 52 30x 30 x 67 30 x 30 x 69 30 x 30 x 72
 Net Weight (kg) 10.5 11 13
11.5
12
14
 Gross Weight (kg)
     11.5
    12  14
12.5
13
15

10 Liters
2.5 GAL
10 Liters Stainless Steel Pressure Tank
10 Liters Stainless Steel Pressure Tank with Bottom Outlet
Pressure Pot

Pressure Tank

Paint pressure feed tanks
Pressure Tank
Pressure Pot
Pressure Tank
 Model
P-10-SUS
S-10-SUS
T-10-SUS
P-10BSUS
S-10BSUS
T-10BSUS
 Capacity(liter)
10L
 Working Pressure
3.5 kg/cm2  |  50 PSI
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 1
1/4" x 1
 Dimension cm (L x W x H) 30 x 30 x 47 30 x 30 x 49 30 x 30 x 52 30x 30 x 67 30 x 30 x 69 30 x 30 x 72
 Net Weight (kg)
10.5
11
13
11.5
12
14
 Gross Weight (kg)
11.5
12
14
12.5
13
15

30 Liters
7.5 GAL
30 Liters Carbon Steel Pressure Tank
30 Liters Carbon Steel Pressure Tank with Bottom Outlet
Pressure Pots
Pressure Tank
Pressure Tank
Pressure Tank
Pressure Pots
Paint pressure feed tanks
 Model
P-30
S-30
T-30
P-30B
S-30B
T-30B
 Capacity(liter)
30L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
43 x 43 x 73
43 x 43 x 73
43 x 43 x 73
43 x 43 x 73
43 x 43 x 73
43 x 43 x 73
 Net Weight (kg)
23.5
23.5
25.5
23.5
23.5
25.5
 Gross Weight (kg)
24.5
24.5
26.5
24.5
24.5
26.5

30 Liters
7.5 GAL
30 Liters Stainless Steel Pressure Tank
30 Liters Stainless Steel Pressure Tank with Bottom Outlet
Paint pressure feed tanks
Pressure Pot
Polyurethane spray coatings
Paint pressure feed tanks
Paint pressure feed tanks
Pressure Pots
 Model
P-30-SUS
S-30-SUS
T-30-SUS
P-30BSUS
S-30BSUS
T-30BSUS
 Capacity(liter)
30L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
43 x 43 x 73
43 x 43 x 73
43 x 43 x 73
43 x 43 x 73
43 x 43 x 73
43 x 43 x 73
 Net Weight (kg)
23.5
23.5
25.5
23.5
23.5
25.5
 Gross Weight (kg)
24.5
34.5
26.5
24.5
24.5
26.5
*All pressure tanks availible in Max. working pressure of 10 kg/cm2 upon request, suitable for high viscosity fluid.


40 Liters
10 GAL

40 Liters Carbon Steel Pressure Tank
40 Liters Carbon Steel Pressure Tank with Bottom Outlet
Paint pressure feed tanks
Silicone spray cans
Pressure Tank
Paint pressure feed tanks
Paint pressure feed tanks
 Model
P-40
S-40
T-40
P-40B
S-40B
T-40B
 Capacity(liter)
40L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
43 x 43 x 88
43 x 43 x 88
43 x 43 x 88
43 x 43 x 88
43 x 43 x 88
43 x 43 x 88
 Net Weight (kg)
28
28
30
28
28
30
 Gross Weight (kg)
29
29
31
29
29
31

40 Liters
10 GAL
40 Liters Stainless Steel Pressure Tank
40 Liters Stainless Steel Pressure Tank with Bottom Outlet
Paint pressure feed tanks
Silicone spray cans
Pressure Pots
Paint pressure feed tanks
Polyurethane spray coatings
Paint pressure feed tanks
 Model
P-40-SUS
S-40-SUS
T-40-SUS
P-40BSUS
S-40BSUS
T-40BSUS
 Capacity(liter)
40L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
43 x 43 x 88
43 x 43 x 88
43 x 43 x 88
43 x 43 x 88
43 x 43 x 88
43 x 43 x 88
 Net Weight (kg)
28
28
30
28
28
30
 Gross Weight (kg)
29
29
31
29
29
31
*All pressure tanks availible in Max. working pressure of 10 kg/cm2 upon request, suitable for high viscosity fluid.

60 Liters
15 GAL
60Liters Carbon Steel Pressure Tank
60 Liters Carbon Steel Pressure Tank with Bottom Outlet
Pressure Tank
  Silicone spray cans
Pressure Pot
Pressure Pot
Silicone spray cans
Paint pressure feed tanks
 Model
P-60
S-60
T-60
P-60B
S-60B
T-60B
 Capacity(liter)
60L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
57 x 57 x 88
57 x 57 x 88
57 x 57 x 88
57 x 57 x 88
57 x 57 x 88
57 x 57 x 88
 Net Weight (kg)
33
33
35
33
33
35
 Gross Weight (kg)
34
34
36
34
34
36

60 Liters
15 GAL
60 Liters Stainless Steel Pressure Tank
60 Liters Stainless Steel Pressure Tank with Bottom Outlet
P-60SUS

Pressure Pot

Silicone spray cans

Polyurethane spray coatings
Polyurethane spray coatings
Pressure Pots
 Model
P-60-SUS
S-60-SUS
T-60-SUS
P-60BSUS
S-60BSUS
T-60BSUS
 Capacity(liter)
60L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
57 x 57 x 88
57 x 57 x 88
57 x 57 x 88
57 x 57 x 88
57 x 57 x 88
57 x 57 x 88
 Net Weight (kg)
33
33
35
33
33
35
 Gross Weight (kg)
34
34
36
34
34
36
*All pressure tanks availible in Max. working pressure of 10 kg/cm2 upon request, suitable for high viscosity fluid.

80 Liters
20 GAL
80Liters Carbon Steel Pressure Tank
80 Liters Carbon Steel Pressure Tank with Bottom Outlet
 Pressure Pots
Silicone spray cans
Pressure Tank
Silicone spray cans
Pressure Tank
Pressure Pot
 Model
P-80
S-80
T-80
P-80B
S-80B
T-80B
 Capacity(liter)
80L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
57 x 57 x 103
57 x 57 x 103
57 x 57 x 103
57 x 57 x 103
57 x 57 x 103
57 x 57 x 103
 Net Weight (kg)
36.5
36.5
38.5
36.5
36.5
38.5
 Gross Weight (kg)
37.5
37.5
39.5
37.5
37.5
39.5

80 Liters
20 GAL
80 Liters Stainless Steel Pressure Tank
80 Liters Stainless Steel Pressure Tank with Bottom Outlet
Pressure Pots
Silicone spray cans
Polyurethane spray coatings
Polyurethane spray coatings
Pressure Pot
Silicone spray cans
 Model
P-80-SUS
S-80-SUS
T-80-SUS
P-80BSUS
S-80BSUS
T-80BSUS
 Capacity(liter)
80L
 Working Pressure
3.5 kg/cm |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
57 x 57 x 103
57 x 57 x 103
57 x 57 x 103
57 x 57 x 103
57 x 57 x 103
57 x 57 x 103
 Net Weight (kg)
36.5
36.5
38.5
36.5
36.5
38.5
 Gross Weight (kg)
37.5
37.5
39.5
37.5
37.5
39.5
*All pressure tanks availible in Max. working pressure of 10 kg/cm2 upon request, suitable for high viscosity fluid.


100 Liters
25 GAL
100 Liters Carbon Steel Pressure Tank
100 Liters Carbon Steel Pressure Tank with Bottom Outlet

Silicone spray cans
Pressure Tank

 Model
P-100
S-100
T-100
P-100B
S-100B
T-100B
 Capacity(liter)
100 L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
 Net Weight (kg)
 Gross Weight (kg)

100Liters
25 GAL
100 Liters Stainless Steel Pressure Tank
100 Liters Stainless Steel Pressure Tank with Bottom Outlet
Pressure Tank
Polyurethane spray coatings
pressure tank
Funnel may order
  pressure tank
Polyurethane spray coatings
Funnel may order
 Model
P-100-SUS
S-100-SUS
T-100-SUS
P-100BSUS
S-100BSUS
T-100BSUS
 Capacity(liter)
100 L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
 Net Weight (kg)
 Gross Weight (kg)
*All pressure tanks availible in Max. working pressure of 10 kg/cm2 upon request, suitable for high viscosity fluid.

120Liters
30 GAL

120 Liters Carbon Steel Pressure Tank
120 Liters Carbon Steel Pressure Tank with Bottom Outlet

Silicone spray cans
     Pressure Tank
 Model
P-120
S-120
T-120
P-120B
S-120B
T-120B
 Capacity(liter)
120 L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
 Net Weight (kg)
 Gross Weight (kg)

120Liters
30 GAL

120 Liters Stainless Steel Pressure Tank
120 Liters Stainless Steel Pressure Tank with Bottom Outlet

Polyurethane spray coatings

 Model
P-120-SUS
S-120-SUS
T-120-SUS
P-120BSUS
S-120BSUS
T-120BSUS
 Capacity(liter)
120 L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
80 x 80 x 146

 Net Weight (kg)

 Gross Weight (kg)

*All pressure tanks availible in Max. working pressure of 10 kg/cm2 upon request, suitable for high viscosity fluid.

150Liters
30 GAL

150 Liters Stainless Steel Pressure Tank
150 Liters Stainless Steel Pressure Tank with Bottom Outlet

Polyurethane spray coatings
Pressure Tank   Pressure Tank
 Model
P-150-SUS
S-150-SUS
T-150-SUS
P-150BSUS
S-150BSUS
T-150BSUS
 Capacity(liter)
150 L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
80 x 80 x 146
80 x 80 x 115   80 x 80 x 146
 Net Weight (kg)

 Gross Weight (kg)

*All pressure tanks availible in Max. working pressure of 10 kg/cm2 upon request, suitable for high viscosity fluid.

200Liters
50 GAL

200 Liters Carbon Steel Pressure Tank
200 Liters Carbon Steel Pressure Tank with Bottom Outlet

 Model
P-200
S-200
T-200
P-200B
S-200B
T-200B
 Capacity(liter)
200 L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
 Net Weight (kg)
 Gross Weight (kg)

200Liters
50 GAL
200 Liters Stainless Steel Pressure Tank
200 Liters Stainless Steel Pressure Tank with Bottom Outlet

 Model
P-200-SUS
S-200-SUS
T-200-SUS
P-200BSUS
S-200BSUS
T-200BSUS
 Capacity(liter)
200 L
 Working Pressure
3.5 kg/cm2  |  50 PSI
 Mixer
N/A
Manual
TONSON Air Motor
N/A
Manual
TONSON Air Motor
 Material Outlet
1/4" x 2
1/4" x 2
 Dimension cm (L x W x H)
 Net Weight (kg)
 Gross Weight (kg)
*All pressure tanks availible in Max. working pressure of 10 kg/cm2 upon request, suitable for high viscosity fluid.

Dual Layer Pressure Tank
Dual-layered pressure tank
For heating with steam or oil.
Ideal for maintaining stability of material and manufacturing process.





tonson logo neumek logo
TONSON Air Motors Mfg. Corp. NeuMek Corporation

22 Shu-Yi 1st Lane
Taichung, 40256, TAIWAN

289 Long Lian Rd. Qing Pu District
Shanghai, 201702, CHINA
TEL: +886-(0)4-2261-1047    TEL: +86-(0)21-2281-8889 Mobile: +86-13917636393
FAX: +886-(0)4-2261-1678 FAX: +86-(0)21-3987-9136
www.tonson-motor.com www.neumek.cn
sales@tonson-motor.com sales@neumek.com

Copyright ©™ 1966 - 2010 TONSON Air Motors Mfg. Corp.
