FS-1 Series Fine Spray Gun Essential Release Agents Spray Gun
   with Round-Flat Spray Regulation
Spray Gun TONSON Specially designed to handle sprayable fluids of very low viscosities.
(ex. Release Agents or oils) in finest droplets with reduced overspray.

Fine coordination of prevision made nozzle, needle and air cap produce an atomizing result which particularly when applying release agents gives an extreme smooth layer on moulds and dies. Worldwide this very handy gun is popular in the field of thermoplastic industries and the foundry industries. Featuring handy short gun body and the duo-feed hose for fluid as well as atomizing air through the grip to allow comfortable handling. In accordance to latest regulations, release agents free of CFC will only be allowed. These agents provide a smooth finish of fine droplets to the surface when applied with this gun.
Different nozzle extensions and HVLP-technique for application of adhesives available.

Nozzle Diameter:   0.2, 0.3, 0.5, 0.8, 1.0, 1.2, 1.5 mm
Max. Material Pressure:   4 bar (58 PSI)
Max. Air Pressure:   6 bar (87 PSI)
Air Hose:   PU 4 mm x 6 mm (ID x OD)
Material Hose:   PE 4 mm x 6 mm (ID x OD)
Gund Body:    Aluminum
Nozzle and Needle:     Stainless Steel
Mass:   240 g (0.53 lb)

Option: Standard

Specifications may be customized.
Pictures are for illustration only. Subject to change without notice.

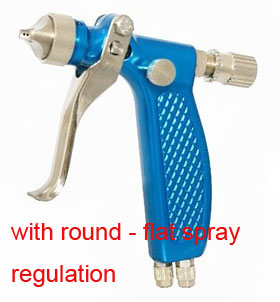

Release Agent Spray Gun with Round-Flat Spray Regulation

Order Code
FS-1R-##               ##: Nozzle Option: (02 = 0.2 mm, 03 = 0.3 mm, 05 = 0.5 mm...)
Example: FS-1R-05 (0.5 mm nozzle Release Agent Spray Gun with Round-Flat Spray Regulation )
