Air Fan - Explosion Proof Fan

Confined Space Hazard Prevention

Necessities for ventilation, exhaust and cooling of climate in hazardous environments
“Necessity is the mother of invention.” Explosion-proof air fans are necessities for ventilation, exhaust and cooling of climate in hazardous environments (flammable, volatile material working area, mine, high temperature, vitiated atmosphere) . It is used for extraction of vitiated, overheated and contaminated air and the supply and distribution of fresh air in amounts necessary to provide healthful and comfortable conditions for the occupants of the space being ventilated. Applying to offices and workshops means the creation of an environment which stimulates the worker to higher efficiency.
TONSON offers stand (tripod), stand with oscillation, benchtop, benchtop with oscillation, wall-mount, axial-flow and ceiling air fans for use in harsh environment. Cooling hot spots reliably.

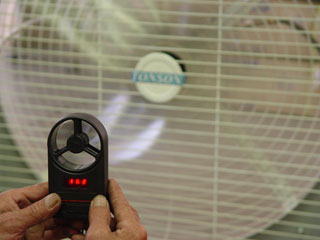

air speed test
Practical Application
GREAT AIR CIRCULATION

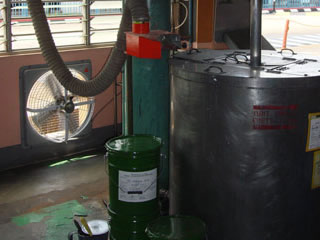

Practical Example

FEATURES
Complete Safety (No Heat / Spark will generated if blades are impeded.)
Explosion-proof
Great Air Circulation
Toleration of Environment (flammable, volatile, high temperature and humid locations)
Low Air Consumption
Variable Stepless Speed Control
Instant Reversibility of Rotation for Ventilation or Exhaust
Hermetically Sealed Motors (Preventing Dirt / Dust)

Patent Awards
USA Patent
China Patent
Taiwan Patent
U.S.A.
CHINA
TAIWAN

Working Fluid : Compressed Air Operating Pressure : 6 kg /cm2 (85 PSI)
Ambient Temperature : -10 ~ +120C Max.Operating Pressure : 7 kg /cm2 (100 PSI)
Air Fans are designed to operate by compressed air and to be used with F.R.L.(filiter, regulator and lubricator)
to improve performance and provide longer life.
Users should be responsible for determining suitability of the product for intended use and assuming all risk and
liability whatsoever in connection therewith.
For higher flow rate or flow velocity requirement, please consult TONSON.

Specifications
Specifications are subject to change without notice.
150° oscillation greater flexibility for cooling broader range hot spots quickly and simply.

Stand Oscillation
Air Fan
(18" Air Fan)
18 inch Oscillation Air Fan with Aluminum Propeller
18 inch Oscillation Air Fan
Air Fan
Stand Oscillation Air Fan


Model
TGS-18P
TGS-18AL
TGS-18PT
TGS-18ALT
Blade Material
P.P.
Aluminum
P.P.
Aluminum
F.R.L
Χ
Χ
with air service unit
with air service unit
Thickness (mm)
200
Length (mm)
1,110 x 590
Pedestal Adjust
(mm | inch)
610~889mm | 24"~35"
Flow Rate (m3/ h | CFM)
5,700 | 3,360
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
9　
9.5　
9.7　
10.2　
Gross Weight (kg)
10　
10.5　
10.7　
11.2　

Stand Air Fan
(18" Air Fan)
18 inch pneumatic fan with FRL
18 inch air fan with PP propeller
18 inch pneumatic fan with aluminum propeller and FRL
18 inch air fan with aluminum propeller
Model
TG-18P
TG-18AL
TG-18PT
TG-18ALT
Blade Material
P.P.
Aluminum
P.P.
Aluminum
F.R.L
Χ
Χ
with frl
with air service unit
Thickness (mm)
200
Length (mm)
1,110 x 590
Pedestal Adjust
(mm | inch)
610~889mm | 24"~35"
Flow Rate (m3/ h | CFM)
5,700 | 3,360
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
8.6　
9.1　
　9.3
9.8
Gross Weight (kg)
9.6　
10.1　
　10.3
10.8

Stand Air Fan
(24" Air Fan)
Stand Air Fans
Stand Oscillation Air Fans
new-to-the-world products
24 inch Stand Air Fan
24 inch Pneumatic Fan with Aluminum Propeller
24 inch Oscillation Air Fan
Stand Air Fan
Model
TG-24AL
TG-24ALT
TGS-24AL
TGS-24ALT
Blade Material
Aluminum
Aluminum
Aluminum
Aluminum
F.R.L
Χ
with air service unit
Χ
with air service unit
Thickness (mm)
240
Length (mm)
1,260 x 850
Pedestal Adjust
(mm | inch)
610~889mm | 24"~35"
Flow Rate (m3/ h | CFM)
6,500 | 3,830
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
14
15.5
14.5
16
Gross Weight (kg)
15.5
17
16
17.5

Bench Top Air Fan
(18" air fan)
Bench Top Air Fan
Air Fan
Oscillation Air Fan
Bench Top Oscillation Air Fan
Model
TB-18P
TB-18PT
TB-18AL
TB-18ALT
Blade Material
P.P.
P.P.
Aluminum
Aluminum
F.R.L
Χ
with air service unit
Χ
with air service unit
Thickness (mm)
200
Length (mm)
430 x 590
Flow Rate (m3/ h | CFM)
5,700 | 3,360
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
8.5　
9.2　
9　
9.7　
Gross Weight (kg)
9.5　
10.2　
10　
10.7　

150° oscillation greater flexibility for cooling broader range hot spots quickly and simply.
Bench Top Oscillation Air Fan (18" air fan)
18 inch Bench Top Oscillation Air Fan
Air Fan
Oscillation Air Fan
Bench Top Oscillation Air Fan
Model
TBS-18P
TBS-18PT
TBS-18AL
TBS-18ALT
Blade Material
P.P.
P.P.
Aluminum
Aluminum
F.R.L
Χ
with air service unit
Χ
with air service unit
Thickness (mm)
200
Length (mm)
430 x 590
Flow Rate (m3/ h | CFM)
5,700 | 3,360
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
8.5　
9.2　
9　
9.7　
Gross Weight (kg)
9.5　
10.2　
10　
10.7　

150° oscillation greater flexibility for cooling broader range hot spots quickly and simply.
Wall Oscillation Air Fan (18" air fan)
Air Fan
Wall Oscillation Air Fan
Wall Oscillation Air Fan
Wall Oscillation Air Fan
Model
TPS-18P
TPS-18PT
TPS-18AL

TPS-18ALT
Blade Material
P.P.
P.P.
Aluminum
Aluminum
F.R.L
Χ
with air service unit
Χ
with air service unit
Thickness (mm)
200
Length (mm)
　
Flow Rate (m3/ h | CFM)
5,700 | 3,360
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
8
8.7
8.5
9.2
Gross Weight (kg)
9
9.7
9.5
10.2
Wall Mount Exhaust Ventilation Fan
(14"&16" Air Fan)
Option
14" Wall Mount Exhaust Ventilation Fan
16" Wall Mount Exhaust Ventilation Fan
14 inch Wall Air Fan
exhaust fans
16 inch Pneumatic Fan
Industrial Wall Fan
Model
TW-14ALM
TW-14ALMT
TW-16ALM
TW-16ALMT
Blade Material
Aluminum
F.R.L
Χ
with air service unit
Χ
with air service unit
Thickness (mm)
165
205
Length (mm)
450 x 450
495 x 495
Flow Rate (m3/ h | CFM)
3,600 | 2,120
4,000 | 2,360
Flow Velocity (m/s)
1.8
1.6
Inlet Connection
1/4"
Net Weight (kg)
4.3
5
4.8
5.5
Gross Weight (kg)
4.8
5.5
5.3
6

Wall Mount Exhaust Ventilation Fan
(18" Air Fan)
Option
18inch Pneumatic Wall Fan with FRL
18 inch Wall Air Fan
Industrial Wall Fan 18 inch
18 inch Wall Fan with FRL
Model
TW-18P
TW-18PT
TW-18AL
TW-18ALT
Blade Material
P.P.
P.P.
Aluminum
Aluminum
F.R.L
Χ
with air service unit
Χ
with air service unit
Thickness (mm)
184
Length (mm)
565 x 565
Flow Rate (m3/ h | CFM)
4,400 | 2,590
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
8.5
9.2
9
9.7
Gross Weight (kg)
9.5
10.2
10

10.7

Wall Mount Exhaust Ventilation Fan With Rear Screen
(18" Air Fan)
Option

18 inch Air Wall Fan with mesh
18 inch Air Wall Fan with mesh and FRL
18 inch Wall Pneumatic Fan with FRL
18 inch Air Wall Fan with FRL
Model
TW-18PM

TW-18PMT
TW-18ALM
TW-18ALMT
Blade Material
P.P.
P.P.
Aluminum
Aluminum
F.R.L
Χ
with air service unit
Χ
with air service unit
Thickness (mm)
184
Length (mm)
565 x 565
Flow Rate (m3/ h | CFM)
4,400 | 2,590
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
9
9.7
9.5
10.2
Gross Weight (kg)
10
10.7
10.5
11.2

Wall Mount Exhaust Ventilation Fan
(24" Air Fan)
Option
Without Rear Screen
With Rear Screen
24 inch Wall Air Fan
24 inch Air Ventilation Fan with FRL
Fan with rear screen
24 inch Industrial Exhause Fan with FRL
Model
TW-24AL
TW-24ALT
TW-24ALM
TW-24ALMT
Blade Material
Aluminum
Aluminum
F.R.L
Χ
with air service unit
Χ
with air service unit
Thickness (mm)
323
Length (mm)
720 x720
Flow Rate (m3/ h | CFM)
5,900 | 3,480
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
12
12.7
13.9
15.4　
Gross Weight (kg)
13.5
14.2
15.4

16.9　

Wall Mount Exhaust Ventilation Fan With Rear Screen
(30" Air Fan)
Option
30 inch Wall Exhaust Ventilation Fan
30 inch Wall Exhaust Ventilation Fan with FRL
Model
TW-30ALM
TW-30ALMT
Blade Material
Aluminum
F.R.L
Χ
with air service unit
Thickness (mm)
230
Length (mm)
870 x 870
Flow Rate (m3/ h | CFM)
7,200 | 4,240
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
15.7
17.2
Gross Weight (kg)
17.2
18.7

Portable Ventilator Axial-flow Air Fan
(8" & 12" Air Fan)
Option
8" Portable Ventilator Axial-flow Air Fans
12" Portable Ventilator Axial-flow Air Fans
Pneumatic Ventilator
8 inch Pneumatic Fan with FRL
 Stainless Steel Axial Fan
Corrosion resistant
Portable Ventilator Axial-flow Air Fans
12 inch Air Fan with FRL
Air Fan
12 inch Air Fan
with reversible control
Model
TR-8AL
TR-8ALT
TR-12S
TR-12AL
TR-12ALT
TR-12ALR
TR-12ALTR
Blade Material
Aluminum
Aluminum
F.R.L
Χ
with air service unit
Χ
Χ
with air service unit
Χ
with air service unit
Width (mm)
190
218
Height (mm)
270
370
Height (add toe) mm
310
390
Flow Rate (m3/ h | CFM)
2,000 | 1,200
2,900 | 1,700
Flow Velocity (m/s)
1.8
1.8
Inlet Connection
1/4"
1/4"
Net Weight (kg)
8
8.7　
13
12
12.7
12.3
13
Gross Weight (kg)
9
9.7　
13.5
12.5
13.5
13.5
14

Axial-flow Air Fan
(18" Air Fan)
Option
18 inch Axial Flow Fan
18 inch Axial Flow Air Fan with Trio
18 inch Industrial Air Fan
18 inch Axial Flow Air Fan with FRL
18 inch Ventilation Fan
with reversible control
Model
TR-18P
TR-18PT
TR-18AL
TR-18ALT
TR-18ALTR
Blade Material
P.P.
P.P.
Aluminum
Aluminum
Aluminum
F.R.L
Χ
with air service unit
Χ
with air service unit
with air service unit
Width (mm)
248
Height (mm)
525
Height (add toe) mm
600
Flow Rate (m3/h | CFM)
4,400 | 2,590
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
17　
17.7　
17.5　
18.4　
19.1　
Gross Weight (kg)
18　
18.7　
18.5　
19.4　
20.1　

Axial-flow Air Fan
(24" Air Fan)
Option
　 24 inch Axial Flow Air Fan
24 inch Axial Flow Air Fan with FRL
24 inch Axial Flow Air Fan with FRL and reversible control
with reversible control
Model
TR-24AL
TR-24ALT
TR-24ALTR
Blade Material
Aluminum
F.R.L
Χ
with air service unit
with air service unit
Width (mm)
310
Height (mm)
680
Height (add toe) mm
760
Flow Rate (m3/h | CFM)
5,900 | 3,480
Flow Velocity (m/s)
1.5
Inlet Connection
1/4"
Net Weight (kg)
24
25.5
26.2
Gross Weight (kg)
24.5
27
27.7

Accessories

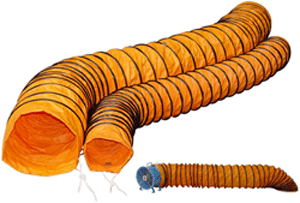

Flexible Duct
flexible duct
Model
FD11
FD15
FD22
FD28
Diameter (inch)
11"
15"
22"
28"
Length (m)
5, 10, 15, 20, 25...etc.
(Available in increment of 5 meters)

Wall Exhaust Shutters
Sturdy shutters for exhaust fans. Blades open when fan operates and close when air flow stops
Wall Exhaust Shutter
Fits Wall Mount Fan Diameter (inch)
material
Louver
louver
Dimension (mm | inch)
A
B
C
D
16"
iron
7 slats
516
460
55
80
18"
8 slats
570
514
55
80
24"
10 slats
710
654
55
80


HEADQUARTER
TONSON AIR MOTORS MFG. CORP.
22 Shu-Yi 1st Lane, Taichung 40256, TAIWAN
TEL: +886-4-2261 1047   Mobile: +886-928 989238   FAX: +886-4-2261 1678

GPS: 24°07'12.38"  N 120°39'25.68" E

CHINA
NeuMek (Shanghai) Corporation
59 Xu Wang Rd., Xu Jing Town Qing Pu District, Shanghai 201702, CHINA
TEL:+86-21 2281 8889   +86-21 2281 7669  FAX:+86-21-3987 9136
Mobile : +86-13917636393 / 13818-336699
  sales@neumek.com

Guang Dong, CHINA
29 San Heng Rd., Ci Bian Xiao Qu, Hou Sa Rd.
Hou Jie Town, Dong Guan 52300, CHINA
TEL:+86-(0) 769 8122 0478   FAX:+86-(0) 769 8122 0479
Mobile : +86-13560848899

Fu Jian , CHINA
12 Building A, Gao Pu Mao Yi Shang Cheng, Xing Lin East Road,
Ji Mei District, Xia Men City, Fu Jian Province, CHINA
TEL:+86-(0) 592 625 9768   FAX:+86-(0) 592 625 9769
Mobile : +86-13779945836

United States
AIR MOTORS TONSON (USA)

AUSTRALIA
TONSON AUSTRALIA Pty. Ltd.
U3, 4 Weld Street
Liverpool Sydney NSW 2177
TEL: +61 (0)2 9600 8881   FAX: +61 (0)2 9600 8882

Copyright ©™ 1966 - 2012 TONSON Air Motors
