Barrel Pumps | Drum Pumps | Oil Pumps for
Dispensing and transfering of light to high viscous fluids.
drum pumps, hand pump, pneumatic drum pump

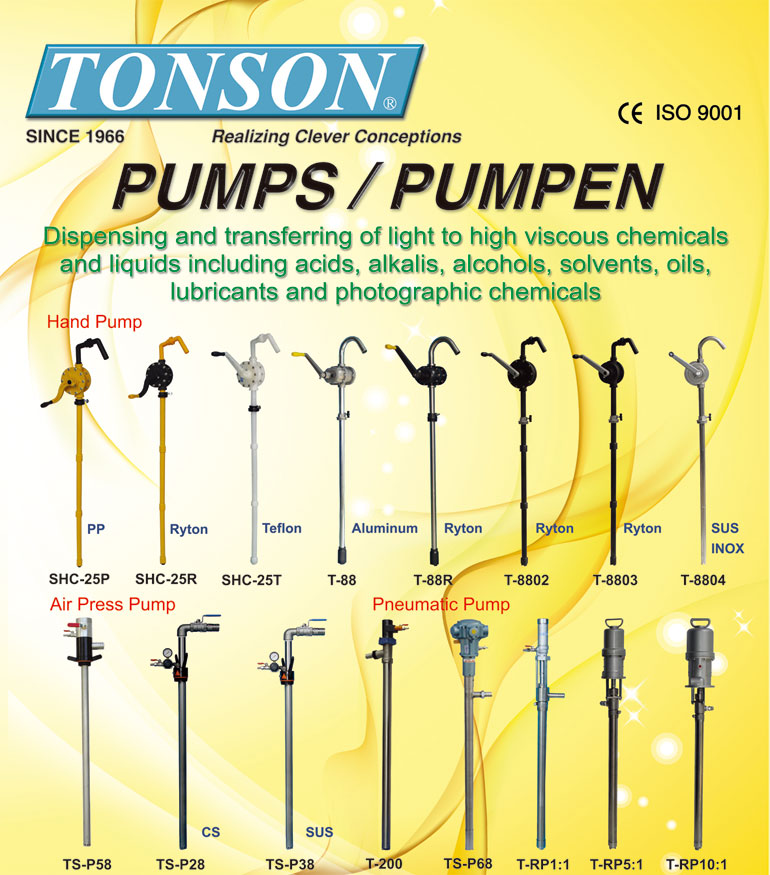

Hand Pumps / Rotary Drum Pumps (Manually operated by hand or may be coupled to pneumatic or electric drive)
Polypropylene Rotary Pump SHC-25P
RYTON Body Rotary Drum Pump (Pump Body) SHC-25R
Teflon PVDF Rotary Drum Pump SHC-25T
Aluminum Rotary High-Flow Drum Pump (transfer one liter per cycle of rotation) T-88
RYTON Rotary High-Flow Drum Pump (transfer one liter per cycle of rotation) T-88R
Stainless Steel Rotary High-Flow Drum Pump (transfer one liter per cycle of rotation) T-88S (By order)
High Volume Ryton Rotary Drum Pump T-8802
Ryton Rotary Drum Pump T-8803
Sainless Steel Rotary Drum Pump Inox T-8804

Air Press Pumps (featuring no moving components)
Discharge and Suction Air Press Pumps (transfer of fluids from A to B or B to A without moving the pump) TS-P58
Carbon Steel Air Press Pumps TS-P28
Stainless Steel Air Press Pumps TS-P38

Pneumatic Pumps | Air-Operated Fluid Transfer Pumps | Heavy-Duty Drum Pumps
High-Flow Drum Pump (Ultra speed Pump, transfer of 200 liters of water in one minute) T-200
Air Screw Pump (30 L/min, Max. Viscosity: 30,000 cps) P-68
1:1 Air Piston Transfer Pump | Air-Operated Fluid Transfer Pumps (40 L/min, 600 CPS, Carbon Steel / Stainless Steel) T-RP / T-RPSS
5:1 Air Piston Transfer Pump | Air-Operated Fluid Transfer Pumps (Carbon Steel / Stainless Steel) T-RP5 / T-RP5SS
10:1 Air Piston Transfer Pump | Air-Operated Fluid Transfer Pumps (Carbon Steel / Stainless Steel) T-RP10 / T-RP10SS
Customization Available Upon Request

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.


Dispensing and transferring of light to high viscous chemicals and liquids including acids, alkalis, alcohols, solvents, oils, lubricants and photographic chemicals


Pneumatic Pump
High Flow Pneumatic Pump
Pneumatic Screw Pump
Screw Pump
Pneumatic Pump
Screw Pump
Air Powered Piston Pump
Air Reciprocating Pump
10:1 Pneumatic Piston Drum Pump
Model
T-200
TS-P68
TS-P68-V6
T-RP1:1
T-RP5:1
T-RP10:1
Pump body material
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
discharge tubing materal
SS
SS
SS
Carbon Steel / SS
SS
SS
Flow Rate (l/min¡UGPM)
100~200L
30L
30L

40L¡U10G
36L
24L
Max. Temp (°C)
100°C
100°C
100°C
80°C¡U176°F
80°C
80°C
Max. Viscosity
(cps)
1,200
30,000
100,000
2,000
8,000
25,000
Air inlet size (inch)
1/4"
1/4"
1/2"
1/4"
3/8" ~ 1/2"
3/8" ~ 1/2"
Inlet size (inch)
11/2"
2"
2"
11/2"
11/2"
11/2"
Outlet size (inch)
3/4"
1"
1"
3/4"
3/4"
3/4"
Discharge tube length (inch)
39"
39"
39"
35"
36"
36"
Overall length (inch)
44"
53"
53"
52"
58"
60"
Weight


Electric Pump
 Electric Pump Electric Pump
Screw		 Electric Pump
Model
 TS-E5511 TS-E7711 TS-E6611
discharge tubing materal
PP
Stainless Steel
Stainless Steel
Flow Rate (l/min)
60
50
100
Voltage (V/Hz)
AC100V/60Hz-220V/60Hz
AC100V/60Hz-220V/60Hz
AC100V/60Hz-220V/60Hz
Max. Viscosity (cps)

1

300

1
Inlet size (inch)
2"
2"
2"
Outlet size (inch)
3/4"
3/4"
1"
Discharge tube length (inch)
39"
39"
39"
Overall length (inch)
53"
53"
53"
Weight (kg)
6
6.5
7

Air Press Pump
Air Press Pump
Carbon Steel Air Press Pump
Stainless Steel Air Press Pump
Model
TS-P58
TS-P28
TS-P38
Pump body material
Carbon Steel
Carbon Steel
Carbon Steel
discharge tubing materal
Stainless Steel
Carbon Steel
Stainless Steel
GPM
125L
125L
125L
Max. Temp (°C)
100°C
100°C
100°C
Max. Viscosity (cps)
1000
1000
1000
Air inlet size (inch)
1/4"
1/4"
1/4"
Inlet size (inch)
1"
1" / 3/4"
1" / 3/4"
Outlet size (inch)
1"
1" / 3/4"
1" / 3/4"
Discharge tube length (inch)
35"
40"
40"
Overall length (inch)
44"
44"
Weight

Hand Pump
Polypropylene Hand Pump
Ryton Hand Pump
Teflon Hand Pump
Aluminum Rotary Hand Pumphand pump
Hand Pump
Manual Pump
Stainless Steel Hand Pump
Model
SHC-25P
SHC-25R
SHC-25T
T-88
T-8802
T-8803
T-8804
Pump body material
Polypropylene
Ryton
Teflon
Aluminum
PPS
PPS
Stainless steel
discharge tubing materal
Polypro
Polypro
Teflon
Carbon Steel
PPS
PPS
Stainless steel
Max. Temp (¢XC)
100¢XC
100¢XC
100¢XC
40¢XC
40¢XC
40¢XC
40¢XC
Flow rate
280cc/cycle
280cc/cycle
280cc/cycle
1000cc/cycle
270cc/cycle
390cc/cycle
290cc/cycle
Max. Viscosity (cps)
1,000
1,000
1,000
1,000
1,000
1,000
1,000
Inlet size (inch)
11/4"
11/4"
11/4"
11/4"
11/4"
11/4"
11/4"
Outlet size (inch)
3/4"
3/4"
3/4"
11/4"
3/4"
3/4"
3/4"
Discharge tube length (inch)
40"
40"
40"
40"
40"
40"
40"
Self-priming
YES
YES
YES
YES
YES
YES
YES
Overall length (inch)
58"
58"
58"
50"
52"
54"
54"
Mass (kg/lb)

Gear Pump
 Gear Pump Gear Pump Gear Pump gear pump
cover option		 Gear Pump Gear Pump
 Gear Pump gear pump
cover option
Model

GPAD-050-25

 GPAB-050-25 GPAD-050-50 GPAB-050-50 GPAD-075-50 GPAB-075-50 GPAD-100 GPAB-100
Gear Pump
 Gear Pump
Stainless steel		 Gear Pump
Stainless steel		 Stainless Steel Gear Pump
Stainless steel		 Gear Pump
Stainless steel		 Gear Pump
Stainless steel		 Gear Pump
Stainless steel		 gear pump
Stainless steel
gear pump
Stainless steel
cover option
model

GPAD-050-25S

 GPAB-050-25S GPAD-050-50S GPAB-050-50S GPAD-075-50S GPAB-075-50S GPAD-100S GPAB-100S
Outlet 1/2" 1/2" 3/4" 1"
Type Direct Belt Direct Belt Direct Belt Direct Belt
Power (HP) 1/4 1/2 1/2 1
Speed (RPM) 450 450 400 400
Flow Rate (l/min) 10 12 20 35
Pressure (kg/cm2) 4-6 4-6 4-6 4-6
Weight (kg/lb)

Electrical Gear Pump
             Electrical Gear Pump
Model

GPED-050-25

 GPEB-050-25 GPED-050-50 GPEB-050-50 GPED-075-50 GPEB-075-50 GPED-100
Electrical Gear Pump
 Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Electrical Gear Pump
Stainless steel
model

GPED-050-25S

 GPEB-050-25S GPED-050-50S GPEB-050-50S GPED-075-50S GPEB-075-50S GPED-100S
Outlet 1/2" 1/2" 3/4" 1"
Type Direct Belt Direct Belt Direct Belt Belt
Power (HP) 1/4 1/2 1/2 1
Speed (RPM) 450 450 400 400
Flow Rate (l/min) 10 12 20 35
Weight (kg/lb)

Foot Pump
Foot Pump

Press Pump
Press Pump
Pump
Press Pump
Model
TJ-W1
TJ-W2
Model
TJ-WS
TJ-W4
TJ-W7
Pump body material
PP
PP / Viton
Pump body material
304SS / Teflon
Zinc / Seel / NBR
Aluminum / Steel / PE / Rubber
discharge tubing materal
Carbon Steel
SS
discharge tubing materal
Max. Pressure (PSI)
2.9 PSI
2.9 PSI
Flow Rate (Stroke)
350cc
530cc
530cc
Max. Temp (¢XC)
60¢XC
60¢XC
Max. Temp (¢XC)

60¢XC
60¢XC
60¢XC
Max. Viscosity
(cps)
1,100
1,100
Max. Viscosity
(cps)
400
800
300
Inlet size (inch)
11/4"
11/4"
Inlet size (inch)
11/2"
11/2"
11/2"
Outlet size (inch)
1"
1"
Discharge tube length (inch)
40"
40"
Discharge tube length (inch)
35"
35"
35"
Weight
Weight


Hand Pump
Hand Pump
Pump
Model
TJ-D1
TJ-D2
Inlet size (inch)
1 "
11/2"
Outlet size (inch)
1"
11/2"
Dimension (mm)
275 x 142 x 100mm
Hand Bar Height (mm)
300mm



TS-P28
Pneumatic oil pump (iron)

Optional choice:
stainless steel (TS-P38)


TS-P58
HIGH SPEED PNEUMATLC OIL PUMP
