Mixing Propellers by TONSON Processing, Propeller manufacturer

Last revision Date: December, 24th, 2014

TONSON® Propellers | Impellers | Dispersers

Variety of mixing, blending, dispersing propellers are available in plastic, aluminum and stainless steel
(304, 316, 316L) depending on different styles of propellers.

Custom shafts and impellers are available in stainless steel (304, 316, 316L) and teflon Coating.

Contact and send us sketch of custom propellers you want to make.

Impeller Selection
*Understanding of process requirements
*Knowledge of physical properties (refer to Material Safety Data Sheet)

How to order (see ordering code)

SS: Stainless Steel

TURBINES (for low to medium viscosity fluids)

Axial Flow Square Pitch (Marine) Propeller
All purpose propellers used for mixing, blending, agitating, liquid movement of all kinds; ideal for small batches. Both left hand (most common) and right hand propellers available.

Square Pitch Propeller	4”, 5”, 6”, 8”, 10” shown
Style	A1
Propeller DIA. (inch)	3 ~ 16
Bore (mm \| inch)	12~50 \| 3/8”~1-1/4”
Material	SS

Axial Flow Impellers
For blending, solids suspension, solids incorporation or draw down, gas inducement, and heat transfer. Custome axial flow impellers may be designed with a different pitch to change the combination of pumping rate and thrust.

Propeller
Style	A2	A3	A4
Propeller DIA. (inch)	Ø10"	Ø8" right handed	Ø8" left handed
Bore (mm)	Ø16~25	Ø16~25	Ø16~25
Material	aluminum, SS	aluminum, SS	aluminum, SS

Propeller
Style	A5	A8	A9
Propeller DIA. (inch)	Ø14"	Ø6"	Ø6"
Bore (mm)	Ø12~16	Ø12	Ø12
Material	aluminum	aluminum	SS

Propeller
Style	D3	D4	D6
Propeller DIA. (inch)	Ø12"	Ø8"~Ø12"	Ø12"
Bore (mm)	Ø16~25	Ø12~25	Ø16~25
Material	aluminum, SS	SS	aluminum, SS

custom dimensions / styles available upon request

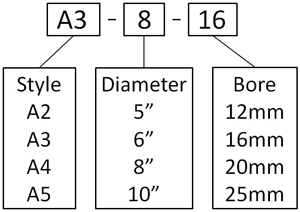

Click for Ordering Code

Propeller					Custom Sample 12
Style	B4	B5	B6	B9
Propeller DIA. (inch)	Ø5"	Ø4"	Ø2³/4"	Ø6"~12"
Bore (mm)	Ø12~16	Ø12~16	Ø7	Ø12
Material	aluminum, SS	aluminum, SS	SS	SS

Several propellers may be mounted on a single shaft for mixing heavy viscous materials. Available in both left and right hand rotation.

Two Bladed Propellers
Style	E1	E2	E3	E4
Propeller DIA. (inch)	Ø10"~18"	Ø10"	Ø6"~7"	Ø12"~16"
Bore (mm)	Ø20	Ø16	Ø16	Ø12~25
Material	aluminum	aluminum	aluminum	aluminum, SS

Two Bladed Propellers
Style	E6	E7
Propeller DIA. (inch)	Ø6"~12"	Ø6"~12"
Bore (mm)	Ø12~25	Ø12~25
Material	SS	SS

custom dimensions / styles available upon request

Click for Ordering Code

Pitched blade turbine
Blending, dispersion, solid suspension where elevated shear needed; handling higher gas rates over hydrofoil impellers.

Pitched blade turbine
Style	A7	AT5	E5
Propeller DIA. (inch)	Ø6"	Ø6"~12"	Ø10"~14"
Bore (mm)	Ø12~16	Ø12~25	Ø20~30
Material	aluminum,SS	SS	SS

High Viscosity	Say "No" to dual-shaft mixers in many applications
Model	A6
Propeller dia.	Ø6"~12"
Bore (mm)	Ø12~25
Material	SS

custom dimensions / styles available upon request

Closed to enter drum or bulk tank, opens up with mixing rotation. For thin materials, use one impeller; for thicker materials use two or three. Set screws included. Shafts are sold separately.

Collapsible	in use idle
	4"	6"	12"
Style	C5
Propeller DIA. (inch)	Ø6"~14"
Bore (mm)	Ø12~25
Material	SS

Folding propellers for fast and thorough mixing. Allowing entering and extraction through small openings.
Closed to enter drum or bulk tank, opens up with mixing rotation. For thin materials, use one impeller;
for thicker materials use two or three. Set screws included. Shafts are sold separately.

Collapsible / Folding	in use idle	in use idle	in use idle
	6"	8"	10"
Style	C5S
Propeller DIA. (inch)	Ø6"~12"
Bore (mm)	Ø12~25
Material	SS

custom dimensions / styles available upon request

Closed Cones Propeller

For aqueous to medium viscosity applications with high volumes particularly such as chemicals, paints, food and beverages, dairy and pharmaceutical products featuring:
-Breaking up agglomerates
Effectively
-Short Mixing Times
-No air intake
-No frothing
-Cleaning easily

Closed Cones High Momentum	6"
Style	C7
Propeller DIA. (inch)	Ø6"~14"
Bore (mm)	Ø12~30
Material	SS (Stainless Steel)

custom dimensions / styles available upon request

Click for Ordering Code

Mixed Flow Impeller
Create circular, axial and radial turbulence force solids off the bottom with minimum swirl and vortex.

Mixed Flow Impeller		Custom Sample 14
Style	MF1		E2	R1
Propeller DIA. (inch)	Ø6"~10"		Ø10"	Ø11"
Bore (mm)	Ø12~25		Ø16	Ø16
Material	SS		aluminum	SS

custom dimensions / styles available upon request

RADIAL FLOW IMPELLER

Open Flat Blade
For low to medium viscosity fluids; most effective for gas-liquid and liquid-liquid dispersion and higher shear and turbulence levels with lower pumping. Providing strong top-to-bottom flows both above and below the impeller when used with suitable baffles.

Open Flat Blade
Style	F1
Propeller DIA. (inch)	Ø6"~10"
Bore (mm)	Ø12~25
Material	SS

Prevents gas from rising along the mixer shaft. Suitable for use with a pitched blade turbine for use in gas-liquid mixing.

Rushton / Disk Style		Custom Sample 13
Style	C6
Propeller DIA. (inch)	Ø2"~25"
Bore (mm)	Ø10~36
Material	SS

custom dimensions / styles available upon request

Click for Ordering Code

Hydrofoil Impellers
For application where axial flow is important and low shear is desired. Efficiently create greater fluid motion for liquid blending, heat transfer and solid suspension with less energy.

Turbo propellers provide low resistance; high efficiency.

Hydrofoil	Teflon Coating	Custom Sample 6
	6"		14"	50"	6"	14"
Style	C4				C4-4
Propeller DIA. (inch)	Ø6"~50"				Ø6"~50"
Bore (mm)	Ø16~75				Ø16~75
Material	SS				SS

Hydrofoil		High Shear Hydrofoil Impellers Rear end saw tooth structure for high shear providing irregular high intensity of turbulence, tearing and crushing solid group like fluid. Maximizing flow per horsepower input, high dispersion; suitable for powder dissolution and dispersion. Style: C4S
Style	C4S
Propeller DIA. (inch)	Ø6"~50"
Bore (mm)	Ø16~75
Material	SS

custom dimensions / styles available upon request

High-shear Impellers
Operated at high speeds and for the addition of a second phase (ex. Gas, liquid, solid, powder) in grinding, dispersing pigments, and making emulsions. Providing high intensity of turbulence in the vicinity of the impeller, maximizing flow per horsepower input. Suitable for paint, clay slurries, paper coating...etc.

High-shear
Style	B7	B8
Propeller DIA. (inch)	Ø2"~5"	Ø5"~6"
Bore (mm)	Ø8~20	Ø12~20
Material	SS	aluminum

Custom
Style	Sample 1	Sample 3	Sample 4	Sample 5	Sample 11

High-shear
Style	C1	C2	C3	D1
Propeller DIA. (inch)	Ø8"	Ø8"	Ø6"~11"	Ø8.5"
Bore (mm)	Ø16~25	Ø16	Ø16~50	Ø16~25
Material	aluminum, SS	aluminum	SS	aluminum, SS

custom dimensions / styles available upon request

Click for Ordering Code

CLOSE-CLEARANCE IMPELLERS (for high viscosity fluids)

Anchor
Designed to physically turnover the fluids and heat transfer in viscous media as viscous fluids are difficult to pump and providing gentle macro scale blending of liquids at low shear.

Anchor
Style	N1
Propeller DIA. (inch)
Bore (mm)
Material	SS

Helical Ribbon
Optimum high viscosity laminar flow impeller for viscosity over 30,000 Mpa providing top-to-bottom physical movement of the liquid; highly effective for blending and heat transfer in viscous media and incorporating surface liquids and solids efficiently.

Helical Ribbon
Style	RB1
Propeller DIA. (inch)
Bore (mm)
Material	SS

Helix
For shear sensitive, uniform blending applications with excellent top-to-bottom turnover flow characteristics.

Helix
Style	H1
Propeller DIA. (inch)
Bore (mm)
Material	SS

Laboratory Impeller

Laboratory
Style	B6	B7
Propeller DIA. (inch)	Ø2³/4"	Ø2"
Bore (mm)	Ø7	Ø8
Material	SS	SS

custom dimensions / styles available upon request

Click for Ordering Code

MIXING TOOLS FOR HANDHELD MIXERS

Small batch mixing propeller
Style	D5
Propeller DIA. (inch)	Ø4"
Bore (mm)	Ø12~25
Material	SS

COATING OPTIONS

Teflon
Style	A3 (coating)	C4
Propeller DIA. (inch)	Ø8"	Ø6"
Bore (mm)	Ø12~25	Ø12~25
Material	aluminum, SS	aluminum, SS

custom dimensions / styles available upon request

CUSTOM SAMPLE

Custom
Style	Sample 1	Sample 2	Sample 3	Sample 4	Sample 5

Custom
Style	Sample 6	Sample 7	Sample 8	Sample 9	Sample 10

Custom
Style	Sample 11	Sample 12	Sample 13	Sample 14	Sample 15

Custom
Style	Sample 16	Sample	Sample	Sample	Sample

Custom
Style	Sample S1	Sample S2	Sample S3	Sample S4	Sample S5

Custom
Style	Sample S6	Sample S7	Sample S8	Sample S9	Sample S10

Custom
Style	Sample S11	Sample S12

How to order (see ordering code)

custom dimensions / styles available upon request

Accessories

Stainless Steel Shafts

Straight Stainless Steel Shafts (SS316 and SS316L); for use with propellers or couplers.

Model	Diameter (mm)	Length (mm)
SS12.7	Ø12.7
SS16	Ø16	customer
SS20	Ø20	specify
SS25	Ø25

Couplers

Available in both carbon steel and stainless steel for use in attaching mixing shafts to motors' or reducers' output shafts. Complete with set screws.

Model

Dimensions

Length
