Pneumatic Blowers Page - Update in Progress

pneumatic blower

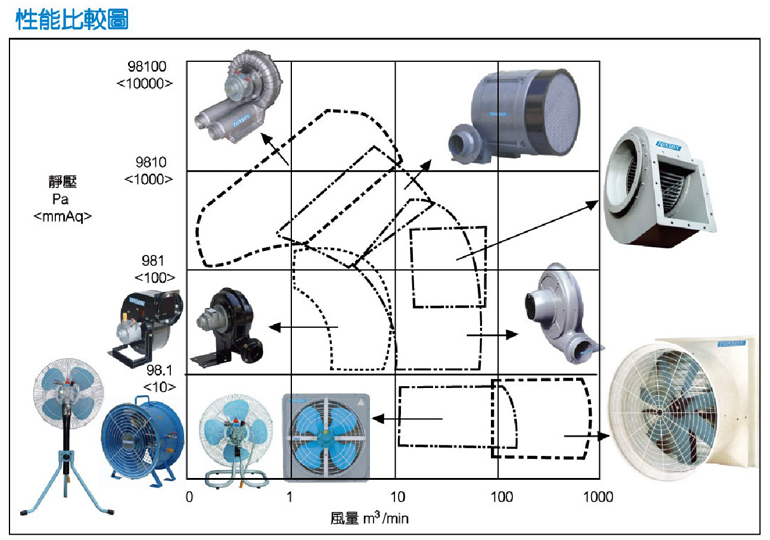

Performance Comparison ChartPerformance Comparison Chart

Pneumatic Air Blower - Explosion Proof Blower
High Pressure
Great Air Flow

TONSON Pneumatic Blowers are ideal for Ventilation / Vacuum / Exhaust / Cooling / Air Conditioning / Dryer / Dehumidifier / Conveying / Air Curtain / Air Cushioning


APPLICATIONS

Printing Machines
Burning Machines
Plastic Extruders, Laminating, Film Making Machines
Uniform Temperature Equipment
Household Machines
Dust Collectors
Textile Machines
Hot Air Blowers
Dryers Machines
Incinerators
Machinery for the Food and Beverage Industries
Machinery for Cooling
Woodworking Machines
Grain elevators

FEATURES

High Pressure
Larger Flow
Light Weight
Special impeller designed, high pressure, larger flow
Low Noise
Long Life
Complete Safety (No Heat / Spark will generated if blades are impeded.)
Explosion-proof
Great Air Circulation
Toleration of Environment (flammable, volatile, high temperature and humid locations)
Variable Stepless Speed Control
Instant Reversibility of Rotation for Ventilation or Exhaust
Hermetically Sealed Motors (Preventing Dirt / Dust)


Working Fluid : Compressed Air Operating Pressure : 6 kg /cm2 (85 PSI)
Ambient Temperature : -10 ~ +120C Max.Operating Pressure : 7 kg /cm2 (100 PSI)
Air blowers are designed to operate by compressed air and to be used with F.R.L.(filiter, regulator and lubricator)
to improve performance and provide longer life.
Users should be responsible for determining suitability of the product for intended use and assuming all risk and
liability whatsoever in connection therewith.
For higher flow rate or flow velocity requirement, please consult TONSON.
Specifications subject to change without notice.

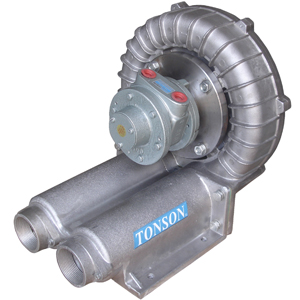

PNEUMATIC RING BLOWERS
Blower
TAU
Specifications

Model

Max. Pressure (mmH2O)

Max. Flow Rate
(m3/min)

Inlet / Outlet

Dimension (mm)

Mass
(kg)

TAU-20

600/700

0.6

1”

225x231x245

9.5

TAU-40

900/1000

1.3

1-1/4”

253x260x277

13

TAU-75

1300/1600

2

1-1/2”

297x297x313

17

TAU-02

1700/1800

3.2

2”

339x361x381

26

TAU-07

1800/1800

10

2-1/2”

492x513x538

78

TAU-15

2000/1800

19

4”

653x669x618

175

Maximum permissible temperature and the gas temperature at the inlet is 40°C

Pneumatic Regenerative Blowers / Side Channel Blowers
Ring Blowers are designed with practical regenerative theory.
Require no maintenance! No oily odor! Eternity life!

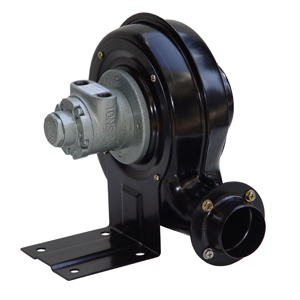

PNEUMATIC CENTRIFUGAL BLOWERS
Blower
TAC
Specifications

Model

Max. Pressure (mmH2O)

Max. Flow Rate
(m3/min)

Inlet / Outlet

Dimension (mm)

Mass
(kg)

TAC-50

40/60

3/3.5

2”

241x216x180

3

TAC-75

65/85

6/8

3”

239x374x251

9

TAC-551

50/70

4/4.5

50*140

224x259x187

4

TAC-751

65/85

5.5/6.5

25*240

280x318x242

10

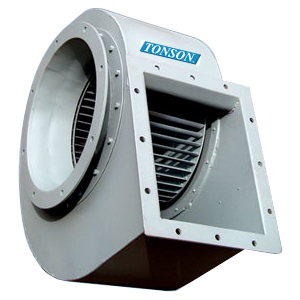

Silent Cooling Blowers

Blower
TAS

Blower
TAS-AL

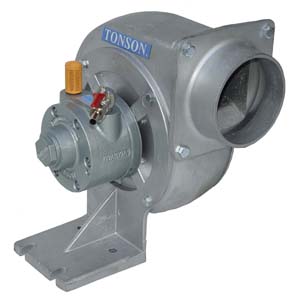

Pneumatic Sirocco Fans / Pneumatic Cooling Fans / Pneumatic Blowers (Aluminum)
Both inlet and outlet are circular for ease of installation. Computerized dynamic balanced ensuring very low vibration during operation. Outlet direction is adjustable.
Specifications

Model

Max. Pressure (mmH2O)

Max. Flow Rate
(m3/min)

Inlet / Outlet

Dimension (mm)

Mass
(kg)

TAS-20

60/80

8/10

4”

282x258x216

9

TAS-40

60/85

15/17

5”

310x300x266

11

TAS-75

80/110

23/25

6”

370x359x316

17

TAS-15

100/120

24/30

8”

335x405x342

29

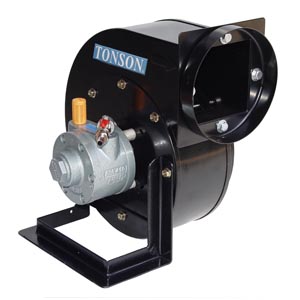

Blower
TAM

Specifications

Model

Max. Pressure (mmH2O)

Max. Flow Rate
(m3/min)

Inlet / Outlet (mm)

Dimension (mm)

Mass
(kg)

TAM-1/4

23/33

12/15

150/150

320x400x288

15

TAM-1/2

35/50

21/25

200/200

380x410x312

20

TAM-1

44/63

40/48

254/254

419x500x338

32

TAM-2

73/98

68/78

300/300

464x535x360

42

TAM-3

73/98

68/78

300/300

464x535x360

48

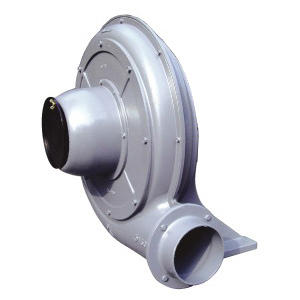

Multi-blade Pneumatic Blowers

Blower
TAB

Specifications

Model

Max. Pressure (mmH2O)

Max. Flow Rate
(m3/min)

Inlet / Outlet

Dimension (mm)

Mass
(kg)

TAB-201

170/230

16/20

4”

495x470x348

23

TAB-125

250/370

30/35

5”

548x558x499

41

TAB-150

400/500

42/50

6”

717x710x498

58

TAB-200

520/650

60/80

8”

800x878x767

185

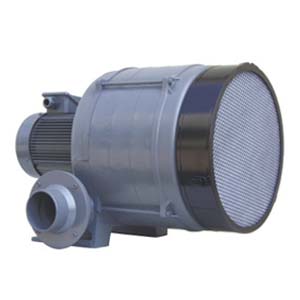

Pneumatic Centrifugal Blowers - Turbo Blowers


Blower
TAHB

Specifications

Model

Max. Pressure (mmH2O)

Max. Flow Rate
(m3/min)

Inlet / Outlet

Dimension (mm)

Mass
(kg)

TAHB-75-2

210/260

6/7

3”

370x331x285

21

TAHB-75-3

290/380

6.5/7.5

3”

370x331x356

24

TAHB-75-4

375/500

6.5/8

3”

370x331x432

26

TAHB-75-5

420/600

6.8/8.5

3”

370x331x503

29

TAHB-100-2

340/450

11/13

4”

498x472x331

28

TAHB-100-3

500/700

10.4/14

4”

498x472x404

36

TAHB-100-4

650/900

12.5/16

4”

498x472x494

45

TAHB-100-5

790/1100

12.8/16.5

4”

498x472x574

55

TAHB-125-3

580/790

19/23

5”

609x565x470

62

TAHB-125-4

750/1050

20/24

5”

609x565x577

87

TAHB-125-5

900/1300

20/24

5”

609x565x644

109

TAHB-200

700/900

52/65

8”

779x815x667

203

Pneumatic Centrifugal Blowers - Multi-Stage Turbo Blowers



插入客製煤礦區專用防爆氣動風機圖片

Mining Explosion-proof Pneumatic Blowers


Specifications


Accessories
Flexible Duct
flexible duct
Model
FD11
FD15
FD22
FD28
Diameter (inch)
11"
15"
22"
28"
Length (m)
5, 10, 15, 20, 25...etc.
(Available in increment of 5 meters)
