TONSON Air Hoists for Vertical and Horizontal Material Handling,
Transporting and Lifting in Hazardous Environments
(flammable, volatile, humid, dust, high temperature)


Capacity: 250, 500, 1000, 2000 kg

FEATURES:

•Never Burn Out

•Chain Overrun Limit

•Pendant Push Button Control
@* 2 Points: Up & Down
@* 4 Points: Up, Down, Left & Right

•Free Speed Control

•Low Noise Level

•Compact Design
@ * Light Weight
@ * Portable

•Durable Drum Brake


Standard Air Hoist

Standard Air Hoist





TOSON Air Hoist

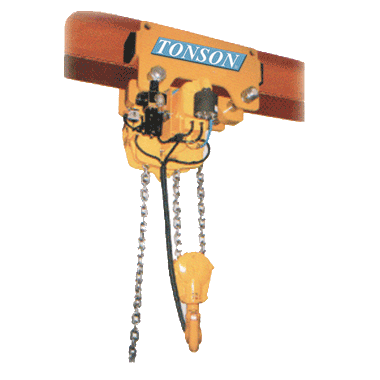

Air Hoist with Trolley

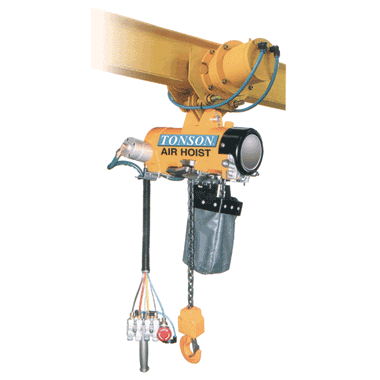

Air Hoist with Trolley (Optional Emergency Stop Push Button)

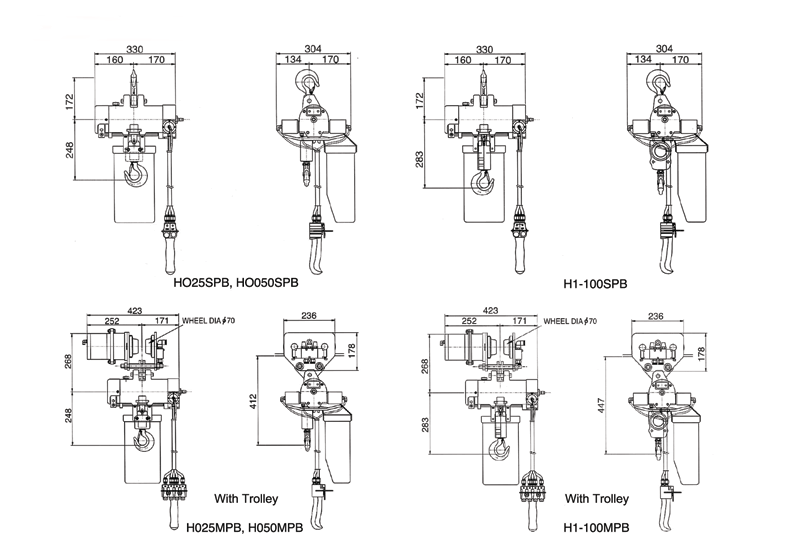

Dimensions
Dimensions


Specifications
Model
Type
Capacity (kg)
Chain Falls
Speed (m/min)
Lift (m)
Air Pressure
(kg / cm^2)
Air Consumption (m^3 / min)
Air Inlet
Mass
(kg)
Rated Load
Up
Down
Left / Right
H025SPB
Standard
250
1
18
19
-
3
6
1.6
1/2"
23
H025MPB
Trolley
25
41
H050SPB
Standard
500
1
12
15
-
3
6
1.6
1/2"
23
H050MPB
Trolley
25
47
H1-100SPB
Standard
1,000
2
6
7.5
-
3
6
1.6
1/2"
33
H1-100MPB
Trolley
25
57
H2-100SPB
Standard
1,000
1
6.5
8
-
3
6
1.6
1/2"
40
H2-100MPB
Trolley
25
70
H2-200SPB
Standard
2,000
2
3.2
4
-
3
6
1.6
1/2"
45
H2-200MPB
Trolley
25
75
H3-300SPB
Standard
3,000
1
3
4
-
3
6
3.14
1/2"
75
H3-300MPB
Trolley
25
140
Specifications are subject to change without notice.
(This equipment shown here should not be used to lift or transport people)
Optional Emergency Stop Push Button Available. Chain Length may be customized upon request.
